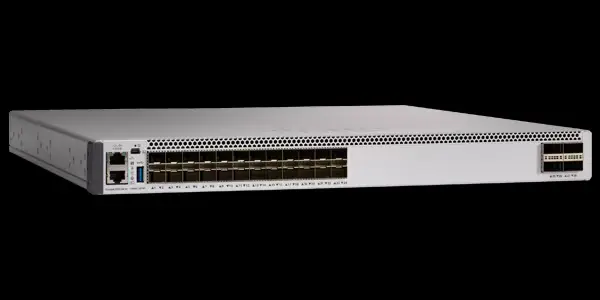

Catalyst 9500 high performance models 48-ports 25G/10G/1G, 4-ports 100G fiber

C9500-48Y4C. High-density fiber models for campus distribution. 48-port 25G/10G/1G (SFP28) and 4-port 100G/40G (QSFP28). Based on Cisco UADP 3.0 ASIC.

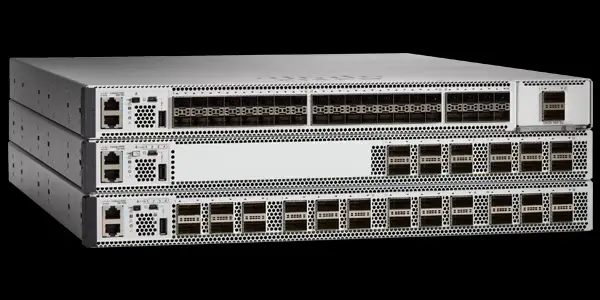

Cisco Catalyst 9500 Series switches based on Cisco Unified Access Data Plane (UADP) Application-Specific Integrated Circuit (ASIC) are Cisco’s lead fixed enterprise core and aggregation switching platform and as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.

Cisco Catalyst 9500X switch based on Cisco Silicon One Q200 ASIC is purpose built for the next generation core with a programmable pipeline (P4) and is the first network silicon to offer switching capacity up to 12.8 Tbps full duplex in the enterprise. The Q200 ASIC offers high-performance along with full routing and switching capabilities without external memories. This is enabled by internal architecture that includes an on-chip High Bandwidth Memory (HBM). The Catalyst 9500X switch leverages a high- performance multiple core x86 CPU, and is Cisco’s leading purpose-built fixed core and edge services enterprise switching platform, built for security, IoT, and cloud.

Product Details

Cisco Catalyst 9500X models

● The Cisco Silicon One Q200 Application-Specific Integrated Circuit (ASIC) is purpose built for the next generation network core + edge switch. It is the first enterprise ASIC to offer speeds up to 12.8 Tbps full duplex with 8 Bpps of forwarding performance, while supporting high-performance and full routing and switching capabilities without external memories.

● The Cisco Silicon One Q200 ASIC is built on 7nm fabrication technology, capable of high performance while maintaining a low power footprint.

● Up to 12.8 (switching ASIC capacity) Tbps switching capacity with 8 Bpps forwarding rate.

● 80MB of dedicated low-latency buffer, with up to 8GB of HBM buffer for deep packet buffers.

● Up to 28 native nonblocking 40/100 Gigabit Ethernet QSFP28 ports.

● Up to 60 native nonblocking 10/25/50 Gigabit Ethernet SFP56 ports.

● Up to 8 native nonblocking 40/100/200/400 Gigabit Ethernet QSFPDD ports.

● Intel 2.3-GHz x86 CPU with 8 cores and 32-GB of DDR4 memory.

● Up to 960 GB of SSD local storage for container-based application hosting (2x 10G KR ports).

● Flexible routing (IPv4, IPv6, and multicast) tables, Layer 2 tables, ACL tables, and QoS tables.

● ASIC tables for switching scale up to 256K MAC addresses and routing scale up to 2M routes.

● Dual-stack IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration.

● Hardware support for Application Hosting.

● Hardware support for line-rate 256-bit 802.1ae MACsec and WAN-MACsec data encryption.

● Cisco StackWise Virtual technology, a network system virtualization technology that increases operational efficiency and boosts nonstop communications and scaled system bandwidth. Multichassis EtherChannel can be configured across StackWise-Virtual members for high resiliency.

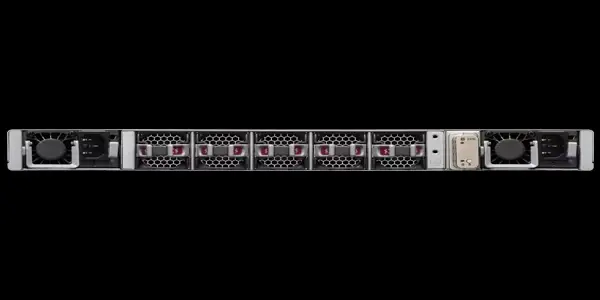

● Platinum-rated (90% efficient) 1500 Watt AC and/or DC power supplies.

● Field-replaceable, N+1 redundant fan-tray units, with an added flexibility to choose the direction of airflow.
